Right Angle 8″ High Vacuum Trap, NW50
$850.00
MSRP:
$850.00
MSRP:

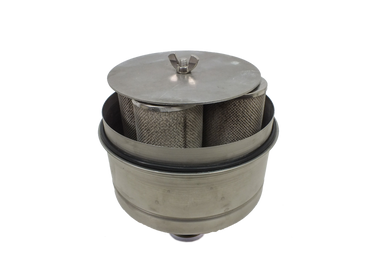

An 8″ stainless steel high vacuum trap with NW50 flange connections set at a right angle configuration. Includes four filter elements (see element choices below). Traps also come in a straight through design. Also available with hose terminations.
Features
Choose from these Elements:
Benefits
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
| Type | Right Angle |
|---|---|
| Housing Material | Stainless Steel |
| Connections | NW50 |
| Dimensions | 8.4" H x 8" W |
This 9.5″ replacement filter element fits standard clear sump housings and helps protect vacuum pumps from harmful vapors and particulates. With multiple filter media options available, it’s a versatile choice for reducing oil back-streaming, trapping contaminants, and extending pump life.
Wondering which filter insert you use for you application? Refer to the table below for more information on each insert.
| Element Material Filter Insert Specifications | ||
|---|---|---|
| Characteristics | Applications | |
| Copper Gauze | Large surface area traps condensable particles and oil vapors | Vacuum Oven, Plasma Ashing, Food Packaging |
| Stainless Steel Gauze | Same as copper, but with added corrosion protection | Vacuum Oven, Plasma Ashing, Food Packaging |
| Molecular Sieve | Reduces mechanical pump oil backstreaming and traps water vapor | Leak Detection, Residual Gas Analysis, Glove Box, Sputtering, Soldering |
| Sodasorb® | Minimizes migration of corrosive chemicals and neutralizes acidic vapors | Freeze Drying, Gel Drying, Reactive Ion Etching |
| Activated Charcoal | Removes organic solvents and vapors from resins and other products | Rotary Evaporation, Distillation, Degassing, Potting, Impregnation |
| Activated Alumina | Removes Lewis acids, polar compounds, other acids, water and particles | Rotary Evaporation, Distillation, Degassing, Potting, Impregnation |
| PolyPro 2 Micron | Traps high volumes of solids and particulates as small as 2 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
| PolyPro 5 Micron | Traps high volumes of solids and particulates as small as 5 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
| PolyPro 20 Micron | Traps high volumes of solids and particulates as small as 20 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
This 4.5″ replacement filter element fits standard clear sump housings and helps protect vacuum pumps from harmful vapors and particulates. With multiple filter media options available, it’s a versatile choice for reducing oil back-streaming, trapping contaminants, and extending pump life.
Wondering which filter insert you use for you application? Refer to the table below for more information on each insert.
| Element Material Filter Insert Specifications | ||
|---|---|---|
| Characteristics | Applications | |
| Copper Gauze | Large surface area traps condensable particles and oil vapors | Vacuum Oven, Plasma Ashing, Food Packaging |
| Stainless Steel Gauze | Same as copper, but with added corrosion protection | Vacuum Oven, Plasma Ashing, Food Packaging |
| Molecular Sieve | Reduces mechanical pump oil backstreaming and traps water vapor | Leak Detection, Residual Gas Analysis, Glove Box, Sputtering, Soldering |
| Sodasorb® | Minimizes migration of corrosive chemicals and neutralizes acidic vapors | Freeze Drying, Gel Drying, Reactive Ion Etching |
| Activated Charcoal | Removes organic solvents and vapors from resins and other products | Rotary Evaporation, Distillation, Degassing, Potting, Impregnation |
| Activated Alumina | Removes Lewis acids, polar compounds, other acids, water and particles | Rotary Evaporation, Distillation, Degassing, Potting, Impregnation |
| PolyPro 2 Micron | Traps high volumes of solids and particulates as small as 2 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
| PolyPro 5 Micron | Traps high volumes of solids and particulates as small as 5 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
| PolyPro 20 Micron | Traps high volumes of solids and particulates as small as 20 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
9.5″ Transparent Sump Trap with various filter insert and fitting options. These traps are used to contain high volumes of solids and particulates. 3/4″ Female Pipe Thread Terminations. Recommended up to 15 cfm.
Wondering which filter insert you use for you application? Refer to the table below for more information on each insert.
| Element Material Filter Insert Specifications | ||
|---|---|---|
| Characteristics | Applications | |
| Copper Gauze | Large surface area traps condensable particles and oil vapors | Vacuum Oven, Plasma Ashing, Food Packaging |
| Stainless Steel Gauze | Same as copper, but with added corrosion protection | Vacuum Oven, Plasma Ashing, Food Packaging |
| Molecular Sieve | Reduces mechanical pump oil backstreaming and traps water vapor | Leak Detection, Residual Gas Analysis, Glove Box, Sputtering, Soldering |
| Sodasorb® | Minimizes migration of corrosive chemicals and neutralizes acidic vapors | Freeze Drying, Gel Drying, Reactive Ion Etching |
| Activated Charcoal | Removes organic solvents and vapors from resins and other products | Rotary Evaporation, Distillation, Degassing, Potting, Impregnation |
| Activated Alumina | Removes Lewis acids, polar compounds, other acids, water and particles | Rotary Evaporation, Distillation, Degassing, Potting, Impregnation |
| PolyPro 2 Micron | Traps high volumes of solids and particulates as small as 2 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
| PolyPro 5 Micron | Traps high volumes of solids and particulates as small as 5 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
| PolyPro 20 Micron | Traps high volumes of solids and particulates as small as 20 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
4.5″ Transparent Sump Trap with various filter insert and fitting options. These traps are used to contain high volumes of solids and particulates. 1/2″ Female Pipe Thread Terminations. Recommended up to 5 cfm.
Wondering which filter insert you use for you application? Refer to the table below for more information on each insert.
| Element Material Filter Insert Specifications | ||
|---|---|---|
| Characteristics | Applications | |
| Copper Gauze | Large surface area traps condensable particles and oil vapors | Vacuum Oven, Plasma Ashing, Food Packaging |
| Stainless Steel Gauze | Same as copper, but with added corrosion protection | Vacuum Oven, Plasma Ashing, Food Packaging |
| Molecular Sieve | Reduces mechanical pump oil backstreaming and traps water vapor | Leak Detection, Residual Gas Analysis, Glove Box, Sputtering, Soldering |
| Sodasorb® | Minimizes migration of corrosive chemicals and neutralizes acidic vapors | Freeze Drying, Gel Drying, Reactive Ion Etching |
| Activated Charcoal | Removes organic solvents and vapors from resins and other products | Rotary Evaporation, Distillation, Degassing, Potting, Impregnation |
| Activated Alumina | Removes Lewis acids, polar compounds, other acids, water and particles | Rotary Evaporation, Distillation, Degassing, Potting, Impregnation |
| PolyPro 2 Micron | Traps high volumes of solids and particulates as small as 2 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
| PolyPro 5 Micron | Traps high volumes of solids and particulates as small as 5 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
| PolyPro 20 Micron | Traps high volumes of solids and particulates as small as 20 microns, reduces oil backstreaming. | Ion Implant, Vacuum Transfer, Hold Down |
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
This 9.5″ Transparent Inlet Filter Bundle provides an effective solution for trapping condensable particles and oil vapors before they reach your vacuum pump. Designed for high flow and corrosion resistance, this filter assembly includes a clear poly sump, stainless steel gauze element, and all necessary NW25 fittings. Fully preassembled and vacuum tested for immediate use.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
This 4.5″ Transparent Inlet Filter Bundle provides an effective solution for trapping condensable particles and oil vapors before they reach your vacuum pump. Designed for high flow and corrosion resistance, this filter assembly includes a clear poly sump, stainless steel gauze element, and all necessary NW25 fittings. Fully preassembled and vacuum tested for immediate use.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The Clear Inline Vacuum Trap is designed as a knockout trap for bulk liquids. Its transparent acrylic sump allows full visibility of fluid accumulation and can be removed for cleanout without disturbing piping. Rated for full vacuum service, this trap is ideal for protecting vacuum systems from contamination.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
A 4″ stainless steel high vacuum trap with NW25 flange connections set at a right angle configuration. Includes one filter element (see element choices below). Traps also come in a straight through design. Also available with hose terminations.
A 4″ stainless steel high vacuum trap with NW25 flange connections set at a straight through configuration. Includes one filter element (see element choices below). Traps also come in a right angle design. Also available with hose terminations.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
An 8″ stainless steel high vacuum trap with NW40 flange connections set at a right angle configuration. Includes four filter elements (see element choices below). Traps also come in a straight through design. Also available with hose terminations.
Features
Choose from these Elements:
Benefits
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
An 8″ stainless steel high vacuum trap with NW50 flange connections set at a straight through configuration. Includes four filter elements (see element choices below). Traps also come in a right angle design. Also available with hose terminations.
Features
Choose from these Elements:
Benefits
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
An 8″ stainless steel high vacuum trap with NW40 flange connections set at a straight through configuration. Includes four filter elements (see element choices below). Traps also come in a right angle design. Also available with hose terminations.
Features
Choose from these Elements:
Benefits
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
