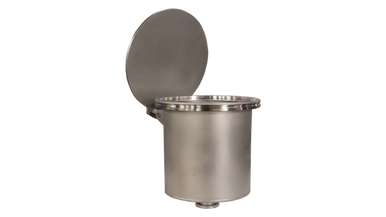

8″ X 8″ Leak Detector Vacuum Chamber with Hinged Lid
$1,850.00
MSRP:
$1,850.00
MSRP:
The 8″ Outer Diameter x 8″ Tall Cylindrical Leak Detector Vacuum Chamber is designed for mounting on the leak detector inlet. Constructed of stainless steel, this LD series vacuum chamber has a hinged lid with a Viton O-ring gasket seal.
| Dimensions | 8″ OD x 8″ H |
|---|---|
| Seal | Viton O-ring |
| Chamber Material | Stainless Steel |
| Lid/Door Material | Stainless Steel |
| Lid/Door Style | Hinged |
| Leak Detector Port | NW25 Bottom (NW40 available on request) |
| Leak Tested | Helium leak tested to 10⁻⁹ atm-cc/sec |
| Product Type | Standard, Leak Detector |
| Chamber Shape | Cylindrical |
| Chamber Size | Small |
| Chamber Orientation | Top Loading |
| Vacuum Level | Medium |
The 12″ DIA x 12″ H Cylindrical Leak Detector Vacuum Chamber is designed for direct mounting on the inlet of a helium leak detector. This compact stainless steel chamber provides a convenient testing volume and features a hinged lid for easy access. A Buna L-gasket seal ensures reliable performance at medium vacuum levels. Ideal for part-level leak testing in controlled setups.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 10″ DIA x 12″ H Cylindrical Leak Detector Vacuum Chamber is designed for mounting directly onto the inlet of a helium leak detector. Built from stainless steel, it provides a durable and compact solution for component leak testing. The chamber features a hinged lid for easy loading and a Buna L-gasket to maintain vacuum integrity.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 8″ Outer Diameter x 8″ Tall Cylindrical Leak Detector Vacuum Chamber is designed for mounting on the leak detector inlet. Constructed of stainless steel the LD vacuum chamber has a fully removable lid with an o-ring seal.
The 4″ DIA x 4″ H Cylindrical Leak Detector Vacuum Chamber is designed for direct mounting to the inlet of helium leak detectors such as the TITAN VERSA. This compact, stainless steel chamber includes a fully removable lid with a O-ring seal for secure and repeatable testing. Each unit is helium leak tested for quality assurance.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 4″ x 4″ x 2″ Leak Detector Vacuum Chamber is designed for direct mounting to the inlet of a helium leak detector. Built from durable aluminum, this compact chamber features a hinged lid with a Viton O-ring seal for easy access and reliable performance. Ideal for benchtop use with systems like the TITAN VERSA.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
Bombing Chamber
Leak Test Chamber
Leak detector vacuum chambers are designed to mount directly to a leak detector’s inlet port, providing a reliable solution for helium leak testing. These chambers are compatible with the TITAN VERSA as well as other major leak detector brands. Standard models are available in multiple sizes and configurations, with custom designs available for specific applications.
Our standard leak test chambers are used for inside out hard vacuum leak testing.
Leak detector vacuum chambers are designed to mount directly to a leak detector’s inlet port, providing a reliable solution for helium leak testing. These chambers are compatible with the TITAN VERSA as well as other major leak detector brands. Standard models are available in multiple sizes and configurations, with custom designs available for specific applications.
Our standard leak test chambers are used for inside out hard vacuum leak testing.
