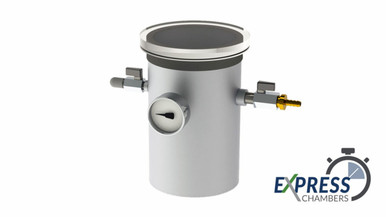

6″ X 9″ Vertical Industrial (VI) Vacuum Chamber
$700.00
MSRP:
$700.00
MSRP:
The 6″ DIA x 9″ H Vertical Industrial (VI) Vacuum Chamber—the smallest standard VI chamber in this best-selling series. These chambers are ideal for leak testing and volume-dependent testing when smaller pump downtimes are required.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
| Dimension | 6" DIA x 9" H |
|---|---|
| Approximate Volume | 234 in³ |
| Seal | Buna L-gasket |
| Vacuum Rating | 0.05 Torr |
| Vacuum Port | 1/2" NPT |
| Vent Port | 1/4" NPT |
| Gauge Port | 1/4" NPT |
| Weight | 5.10 lbs |
| Product Type | Standard |
| Chamber Shape | Cylindrical |
| Chamber Size | Small |
| Chamber Material | Stainless Steel |
| Lid/Door Material | Acrylic |
| Lid/Door Style | Removable |
| Chamber Orientation | Top Loading |
| Vacuum Level | Medium |
The 12″ DIA x 12″ H Cylindrical Leak Detector Vacuum Chamber is designed for direct mounting on the inlet of a helium leak detector. This compact stainless steel chamber provides a convenient testing volume and features a hinged lid for easy access. A Buna L-gasket seal ensures reliable performance at medium vacuum levels. Ideal for part-level leak testing in controlled setups.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 10″ DIA x 12″ H Cylindrical Leak Detector Vacuum Chamber is designed for mounting directly onto the inlet of a helium leak detector. Built from stainless steel, it provides a durable and compact solution for component leak testing. The chamber features a hinged lid for easy loading and a Buna L-gasket to maintain vacuum integrity.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 8″ Outer Diameter x 8″ Tall Cylindrical Leak Detector Vacuum Chamber is designed for mounting on the leak detector inlet. Constructed of stainless steel the LD vacuum chamber has a fully removable lid with an o-ring seal.
The 8″ Outer Diameter x 8″ Tall Cylindrical Leak Detector Vacuum Chamber is designed for mounting on the leak detector inlet. Constructed of stainless steel, this LD series vacuum chamber has a hinged lid with a Viton O-ring gasket seal.
The 4″ DIA x 4″ H Cylindrical Leak Detector Vacuum Chamber is designed for direct mounting to the inlet of helium leak detectors such as the TITAN VERSA. This compact, stainless steel chamber includes a fully removable lid with a O-ring seal for secure and repeatable testing. Each unit is helium leak tested for quality assurance.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
One of our best-selling vacuum chambers, this 18″ X 20″ Vertical High (VH) Vacuum Chamber is ideal for industrial applications requiring a large test volume. The 18″ DIA x 20″ top-loading configuration is designed to fit a 5-gallon pail, making it a great solution for degassing epoxies, resins, and other compounds.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
One of our best-selling high vacuum chambers, the 18″ DIA x 20″ H Vertical High (VH) Vacuum Chamber is ideal for industrial applications requiring large testing volumes. This top-loading configuration is designed to fit a 5-gallon pail, and is ideal for degassing applications.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
LACO’s standard top-loading high vacuum chamber achieves vacuum performance down to 1 x 10-6 Torr and is ideal for high vacuum requirements in a compact space. Chamber is 12″ DIA x 18″ H, with an approximate volume of 1,870 in3.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
LACO’s standard top-loading 12″ DIA x 18″ H Vertical High (VH) Vacuum Chamber achieves vacuum performance down to 10-6 Torr and is ideal for high vacuum requirements in a compact space.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
LACO can provide a range of custom features on vacuum degassing systems, including:
Leak detector vacuum chambers are designed to mount directly to a leak detector’s inlet port, providing a reliable solution for helium leak testing. These chambers are compatible with the TITAN VERSA as well as other major leak detector brands. Standard models are available in multiple sizes and configurations, with custom designs available for specific applications.
Our standard leak test chambers are used for inside out hard vacuum leak testing.
Bombing Chamber
Leak Test Chamber
Leak detector vacuum chambers are designed to mount directly to a leak detector’s inlet port, providing a reliable solution for helium leak testing. These chambers are compatible with the TITAN VERSA as well as other major leak detector brands. Standard models are available in multiple sizes and configurations, with custom designs available for specific applications.
Our standard leak test chambers are used for inside out hard vacuum leak testing.
