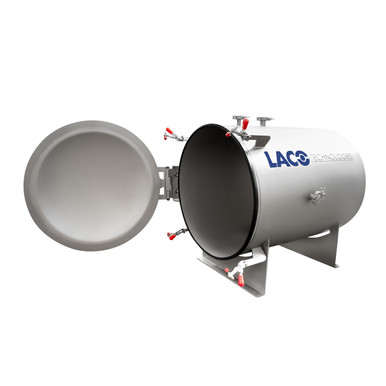

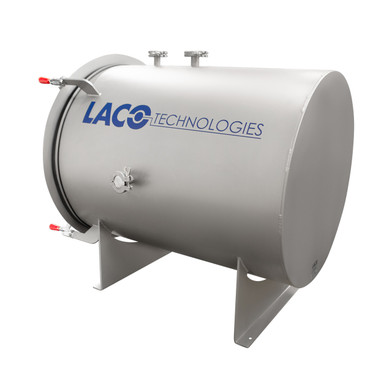

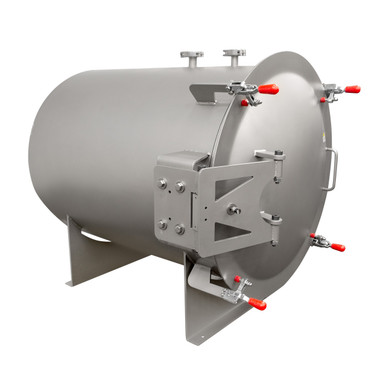

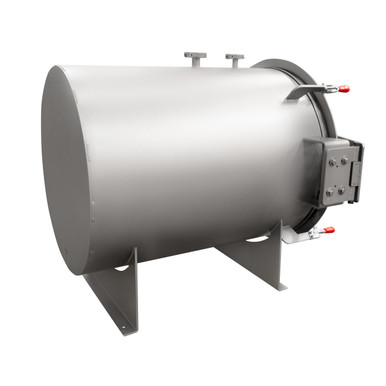

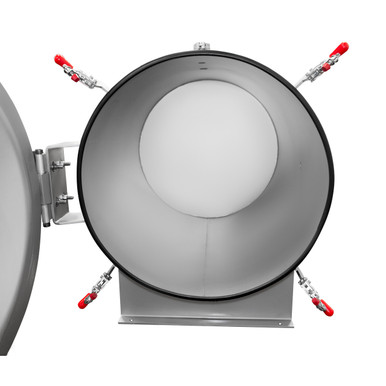

24″ X 30″ Horizontal High (HH) Vacuum Chamber
$6,650.00
MSRP:
$6,650.00
MSRP:
The 24″ x 30″ Horizontal High (HH) Series Vacuum Chamber delivers high vacuum performance in a front-loading, cylindrical design. Built from durable stainless steel and helium leak tested to 10-8 atm-cc/sec, this chamber is ideal for applications requiring reliability and repeatability. A full-opening hinged door allows easy access, and multiple NW ports support versatile connectivity.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
| Dimension | 24" OD x 30" L |
|---|---|
| Chamber Material | Stainless Steel |
| Lid/Door Material | Stainless Steel |
| Lid/Door Style | Hinged |
| Surface Finish | Glass Bead blast inside and out |
| Approximate Volume | 13,000 in³ |
| Door/Lid Seal | Buna L-gasket |
| Vacuum Rating | 1 x 10⁻⁶ Torr to 1 x 10⁻³ Torr, Contact LACO for deeper vacuum levels |
| Weight | 210.4 lbs |
| Product Type | Standard |
| Chamber Shape | Cylindrical |
| Chamber Size | Medium |
| Chamber Orientation | Side Loading |
| Vacuum Level | High |
The 24″ DIA x 30″ L HH Series vacuum chamber features a high vacuum performance with a convenient front-loading design and a hinged door with O-ring.
The 18″ DIA x 20″ L Horizontal High (HH) Vacuum Chamber delivers high vacuum performance with a space-saving front-loading cylindrical design. Constructed from glass bead blasted stainless steel, this chamber features a full-opening hinged door, multiple NW ports, and has been helium leak tested for quality assurance. Ideal for high vacuum applications requiring safe and consistent results.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 12″ DIA x 18″ L Horizontal High (HH) Vacuum Chamber delivers high vacuum performance in a compact front-loading cylindrical design. Built from stainless steel with a full-opening hinged door, this chamber is ideal for high vacuum testing and degassing applications. Each unit is helium leak tested and shipped in a fully crated package for secure delivery.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
Add internal tray brackets, shelves, SS door, viewports, additional ports, feedthroughs and extruded aluminum carts.
All LACO vacuum chambers are helium leak tested for quality assurance and each includes a certificate verifying leak testing. LACO will customize port locations for your specific application needs. Please contact our applications engineers to discuss any questions, special requirements or application support you may require.
Add internal tray brackets, shelves, SS door, viewports, additional ports, feedthroughs and extruded aluminum carts.
All LACO vacuum chambers are helium leak tested for quality assurance and each includes a certificate verifying leak testing. LACO will customize port locations for your specific application needs. Please contact our applications engineers to discuss any questions, special requirements or application support you may require.
Add internal tray brackets, shelves, SS door, viewports, additional ports, feedthroughs and extruded aluminum carts.
All LACO vacuum chambers are helium leak tested for quality assurance and each includes a certificate verifying leak testing. LACO will customize port locations for your specific application needs. Please contact our applications engineers to discuss any questions, special requirements or application support you may require.
LACO’s clear acrylic 12″ DIA x 18″ L vacuum chamber is ideal for front-loading industrial applications. Cradle type support feet are ideal for mounting the vacuum chamber on either a table top or customize by mounting on a LACO cart to quickly move through your facility.
LACO’s stainless steel 12″ DIA x 18″ L Horizontal Industrial (HI) Vacuum Chamber is ideal for convenient front-loading industrial applications. Cradle type support feet are ideal for mounting the vacuum chamber on either a table top or customize by mounting on a LACO cart to quickly move through your facility.
A 1″ thick clear acrylic door provides convenient viewing of your application process.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The stainless steel 18″ DIA x 20″ L Horizontal Industrial (HI) Vacuum Chamber is ideal for convenient front-loading industrial applications. Cradle type support feet are ideal for mounting the vacuum chamber on either a table top or customize by mounting on a LACO cart to quickly move through your facility.
A 1″ thick clear acrylic door provides convenient viewing of your application process.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
Our stainless steel 24″ DIA x 30″ L Horizontal Industrial (HI) Vacuum Chamber is ideal for front-loading industrial applications. Cradle type support feet are ideal for mounting the vacuum chamber on a table top or mount on a LACO cart to quickly move through your facility.
A 1″ thick clear acrylic door provides convenient viewing of your application process.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
