24″ X 30″ Horizontal High (HH) Vacuum Chamber (Hinged Door with O-ring)
$11,735.00
MSRP:
$11,735.00
MSRP:
Lead times may vary, call 801-486-1004 to confirm availability.

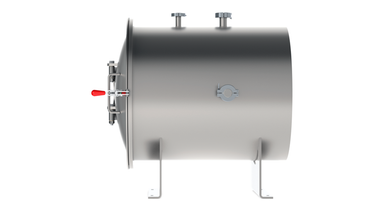

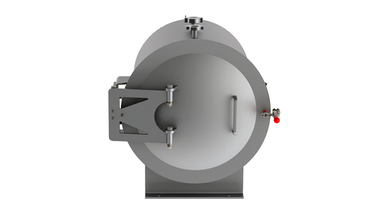

The 24″ DIA x 30″ L HH Series vacuum chamber features a high vacuum performance with a convenient front-loading design and a hinged door with O-ring.
| Dimensions | 24" Outer Diameter x 30" Long |
|---|---|
| Chamber Material | 304 Stainless Steel |
| Approximate Volume | 13,000 in³ |
| Door Seal | O-Ring |
| Vacuum Rating | 1 x 10⁻⁶ Torr to 1 x 10⁻³ Torr, Contact LACO for deeper vacuum levels |
| Three Standard Ports | 2ea NW 25 and 1ea NW 16 Ports per drawing location |
This 4.5″ Transparent Inlet Filter Bundle provides an effective solution for trapping condensable particles and oil vapors before they reach your vacuum pump. Designed for high flow and corrosion resistance, this filter assembly includes a clear poly sump, stainless steel...
Convection-enhanced Pirani vacuum gauge module with a built-in controller, digital display, and process control signal. This bundle provides accurate vacuum pressure measurement from 1.00E-04 to 1,000 Torr and is a direct, lower-cost replacement for basic Granville-Phillips® Mini-Convectron® gauges. Ideal for...
Product Brochures
Manuals/User Guides

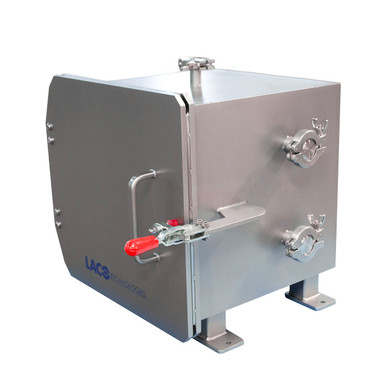

The 12″ Cube High (CH) Vacuum Chamber features a high volume testing with a stainless steel body and door.
All LACO vacuum chambers are helium leak tested for quality assurance and each includes a certificate verifying leak testing.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 12″ DIA x 12″ H Cylindrical Leak Detector Vacuum Chamber is designed for direct mounting on the inlet of a helium leak detector. This compact stainless steel chamber provides a convenient testing volume and features a hinged lid for easy access. A Buna L-gasket seal ensures reliable performance at medium vacuum levels. Ideal for part-level leak testing in controlled setups.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 10″ DIA x 12″ H Cylindrical Leak Detector Vacuum Chamber is designed for mounting directly onto the inlet of a helium leak detector. Built from stainless steel, it provides a durable and compact solution for component leak testing. The chamber features a hinged lid for easy loading and a Buna L-gasket to maintain vacuum integrity.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 8″ Outer Diameter x 8″ Tall Cylindrical Leak Detector Vacuum Chamber is designed for mounting on the leak detector inlet. Constructed of stainless steel the LD vacuum chamber has a fully removable lid with an o-ring seal.
The 8″ Outer Diameter x 8″ Tall Cylindrical Leak Detector Vacuum Chamber is designed for mounting on the leak detector inlet. Constructed of stainless steel, this LD series vacuum chamber has a hinged lid with a Viton O-ring gasket seal.
The 4″ DIA x 4″ H Cylindrical Leak Detector Vacuum Chamber is designed for direct mounting to the inlet of helium leak detectors such as the TITAN VERSA. This compact, stainless steel chamber includes a fully removable lid with a O-ring seal for secure and repeatable testing. Each unit is helium leak tested for quality assurance.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
Add internal tray brackets, shelves, SS door, viewports, additional ports, feedthroughs and extruded aluminum carts.
All LACO vacuum chambers are helium leak tested for quality assurance and each includes a certificate verifying leak testing. LACO will customize port locations for your specific application needs. Please contact our applications engineers to discuss any questions, special requirements or application support you may require.
Add internal tray brackets, shelves, SS door, viewports, additional ports, feedthroughs and extruded aluminum carts.
All LACO vacuum chambers are helium leak tested for quality assurance and each includes a certificate verifying leak testing. LACO will customize port locations for your specific application needs. Please contact our applications engineers to discuss any questions, special requirements or application support you may require.
Add internal tray brackets, shelves, SS door, viewports, additional ports, feedthroughs and extruded aluminum carts.
All LACO vacuum chambers are helium leak tested for quality assurance and each includes a certificate verifying leak testing. LACO will customize port locations for your specific application needs. Please contact our applications engineers to discuss any questions, special requirements or application support you may require.
