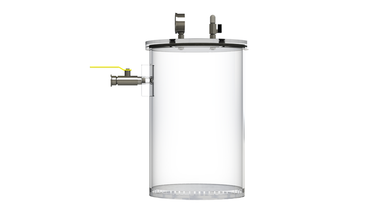

12″ X 18″ Vertical Clear (VC) Vacuum Chamber
$2,300.00
MSRP:
$2,300.00
MSRP:
The 12″ X 18″ Vertical Clear (VC) Vacuum Chamber offers a vertical cylindrical design constructed of durable cast acrylic. The clear acrylic material allows for a full 360° view of your application and can achieve vacuum performance down to 0.1 Torr with the appropriate vacuum pump. The vertical vacuum chamber is designed to be loaded from the top.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
| Dimension | 12" DIA x 18" H |
|---|---|
| Approximate Volume | 2,036 in³ |
| Seal | Buna O-ring |
| Vacuum Rating | 0.1 Torr |
| Vacuum Port | 3/4" NPT |
| Vent Port | 1/4" NPT |
| Gauge Port | 1/4" NPT |
| Weight | 20 lbs |
| Product Type | Standard |
| Chamber Shape | Cylindrical |
| Chamber Size | Small |
| Chamber Material | Acrylic |
| Lid/Door Material | Acrylic |
| Lid/Door Style | Removable |
| Chamber Orientation | Top Loading |
| Vacuum Level | Medium |
The 12″ DIA x 12″ H Vertical Clear (VC) Vacuum Chamber features a top-loading design and a full view of your testing application. This chamber can achieve vacuum performance down to 0.1 Torr with the appropriate vacuum pump.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 8″ DIA x 12″ H Vertical Clear (VC) Vacuum Chamber features a top-loading design and a full view of your testing application. This chamber can achieve vacuum performance down to 0.1 Torr with the appropriate vacuum pump
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
Our 8″ DIA x 12″ H clear acrylic vacuum chamber features a top-loading design and a full view of your testing application. This chamber can achieve vacuum performance down to 0.1 Torr with the appropriate vacuum pump.
