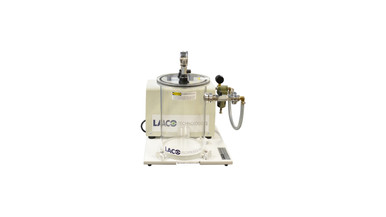

12" X 18" Tabletop Degassing System (Dry Pump / 3.5 CFM)

LACO Custom Standard Tabletop Vacuum Degassing System provides an economical and efficient solution to your degassing application

Chamber Dimension:	12" DIA x 18" H \| LVC1218-1121-VC
Chamber Material:	Clear Acrylic body with 1" thick clear acrylic removable lid
Lid Configuration:	No Hinge/Clamp
Chamber Seal:	Buna O-ring
Vacuum Port:	3/4" NPT
Vent Port:	1/4" NPT
Gauge Port:	1/4" NPT
Approximate Volume (in³):	2,036
Leak Rate:	1 x10^-8 atm cc/sec (helium)
Vacuum Pump:	UN-250VH
System Vacuum Rating:	3.5 CFM
