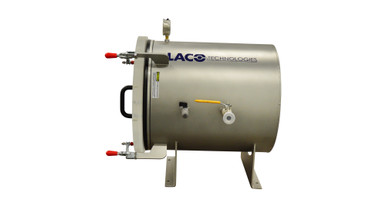

12″ X 18″ Horizontal Industrial (HI) Vacuum Chamber

SKU: LVC1218-3112-HI

$3,975.00

MSRP:

Lead times may vary, email info@lacotech.com to confirm availability.

Engineering Drawing Review

No Formal Engineering Drawing Approval Needed. LACO sales team will review any preferences for location of any added ports. Select If You Would Like To Review And Approve Chamber Drawings Prior To Build With LACO Engineers - add $250

Quantity:

IndustriesAutomotive & Transportation Bio-Pharma Botanical Extraction Chemical & Gas Defense Electronics Fire Protection Laboratory / R&D Medical Power & Energy Refrigeration & A/C Vacuum Technology

LACO’s stainless steel 12″ DIA x 18″ L Horizontal Industrial (HI) Vacuum Chamber is ideal for convenient front-loading industrial applications. Cradle type support feet are ideal for mounting the vacuum chamber on either a table top or customize by mounting on a LACO cart to quickly move through your facility.

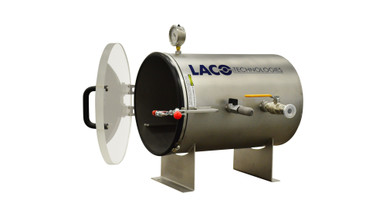

A 1″ thick clear acrylic door provides convenient viewing of your application process.

Features

Vacuum down to 10^-3 Torr
Horizontal cylindrical, front-loading design
1″ thick clear acrylic door
Three standard NPT ports included: 3/4″ vacuum inlet port with manual ball valve, 1/2″ vent port with manual ball valve, and 1/4″ gauge port 0-30 inHg vacuum gauge
Helium leak tested to 10^-8 atm-cc/sec for quality assurance
Cradle type support feet
Includes fully wood crate for shipping chamber safely and efficiently to customer destination.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Dimension	12" OD x 18" Long
Approximate Volume	1,870 in³
Seal	Buna L-gasket
Vacuum Rating	10⁻³ Torr
Vacuum Port	3/4" NPT
Vent Port	1/2" NPT
Gauge Port	1/4" NPT
Weight	63 lbs
Product Type	Standard
Chamber Shape	Cylindrical
Chamber Size	Small
Chamber Material	Stainless Steel
Lid/Door Material	Acrylic
Lid/Door Style	Hinged
Chamber Orientation	Side Loading
Vacuum Level	Medium
