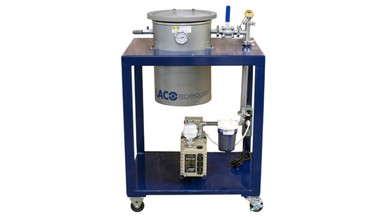

12″ X 18″ Cart Degassing System (Two Stage / 14 CFM)
$9,875.00
MSRP:
$9,875.00
MSRP:
Our standard two-stage cart-mounted vacuum degassing system offers an efficient and portable solution for degassing compounds such as epoxies, urethanes, and resins. This complete system includes a two-stage rotary vane pump, 12″ x 18″ vacuum chamber, and manual valves for full control. Built on a rugged steel cart with locking casters.
| Chamber Dimension | 12" DIA x 18" H |
|---|---|
| Approximate Volume | 2164 in³ |
| Seal | Buna L-gasket |
| Vacuum Rating | 0.05 Torr |
| Lid Configuration | Hinged |
| Vacuum Port | 3/4" NPT |
| Vent Port | 1/2" NPT |
| Gauge Port | 1/4" NPT |
| Pumping Speed | 14 CFM |
| Vacuum Pump | Two-stage, oil-sealed rotary vane pump (10⁻² Torr) |
| Vacuum Gauge | High vacuum digital gauge measuring in torr and millitorr |
| Accessories | Includes clear trap, oil mist eliminator, and related hoses and connectors |
| Weight | 234 lbs |
| Application | Degassing |
| Product Type | Standard |
| Chamber Shape | Cylindrical |
| Chamber Size | Small |
| Chamber Material | Stainless Steel |
| Lid/Door Material | Acrylic |
| Lid/Door Style | Hinged |
| Mounting Style | Cart-Mounted |
| Vacuum Rating | Medium |
