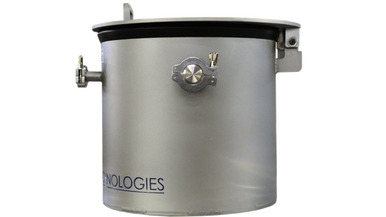

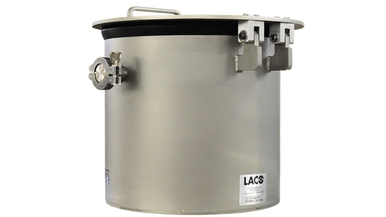

12″ X 12″ Vertical High (VH) Vacuum Chamber (Hinged Lid)
$1,865.00
MSRP:
$1,865.00
MSRP:
LACO’s 12″ x 12″ Vertical High (VH) Vacuum Chamber feature a vertical cylindrical configuration. Constructed of a stainless steel body and hinged lid with an L-gasket seal. These economical vacuum chambers are ideal for a variety of general vacuum applications including altitude and space simulation, gas and materials analysis, materials research and processing, vacuum metallurgy and joining techniques, product and environmental testing and many lab applications.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
| Dimension | 12" OD x 12" H |
|---|---|
| Approximate Volume | 1,410 in³ |
| Seal | Buna L-gasket |
| Vacuum Rating | 1 x 10⁻⁶ Torr to 1 x 10⁻³ Torr, Contact LACO for deeper vacuum levels |
| Vacuum Port | NW25 |
| Vent Port | NW16 |
| Gauge Port | NW16 |
| Weight | 50 lbs |
| Product Type | Standard |
| Chamber Shape | Cylindrical |
| Chamber Size | Small |
| Chamber Material | Stainless Steel |
| Lid/Door Material | Stainless Steel |
| Lid/Door Style | Hinged |
| Chamber Orientation | Top Loading |
| Vacuum Level | High |
The 12″ DIA x 12″ H Cylindrical Leak Detector Vacuum Chamber is designed for direct mounting on the inlet of a helium leak detector. This compact stainless steel chamber provides a convenient testing volume and features a hinged lid for easy access. A Buna L-gasket seal ensures reliable performance at medium vacuum levels. Ideal for part-level leak testing in controlled setups.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 10″ DIA x 12″ H Cylindrical Leak Detector Vacuum Chamber is designed for mounting directly onto the inlet of a helium leak detector. Built from stainless steel, it provides a durable and compact solution for component leak testing. The chamber features a hinged lid for easy loading and a Buna L-gasket to maintain vacuum integrity.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
The 8″ Outer Diameter x 8″ Tall Cylindrical Leak Detector Vacuum Chamber is designed for mounting on the leak detector inlet. Constructed of stainless steel the LD vacuum chamber has a fully removable lid with an o-ring seal.
The 8″ Outer Diameter x 8″ Tall Cylindrical Leak Detector Vacuum Chamber is designed for mounting on the leak detector inlet. Constructed of stainless steel, this LD series vacuum chamber has a hinged lid with a Viton O-ring gasket seal.
The 4″ DIA x 4″ H Cylindrical Leak Detector Vacuum Chamber is designed for direct mounting to the inlet of helium leak detectors such as the TITAN VERSA. This compact, stainless steel chamber includes a fully removable lid with a O-ring seal for secure and repeatable testing. Each unit is helium leak tested for quality assurance.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
One of our best-selling vacuum chambers, this 18″ X 20″ Vertical High (VH) Vacuum Chamber is ideal for industrial applications requiring a large test volume. The 18″ DIA x 20″ top-loading configuration is designed to fit a 5-gallon pail, making it a great solution for degassing epoxies, resins, and other compounds.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
One of our best-selling high vacuum chambers, the 18″ DIA x 20″ H Vertical High (VH) Vacuum Chamber is ideal for industrial applications requiring large testing volumes. This top-loading configuration is designed to fit a 5-gallon pail, and is ideal for degassing applications.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
LACO’s standard top-loading high vacuum chamber achieves vacuum performance down to 1 x 10-6 Torr and is ideal for high vacuum requirements in a compact space. Chamber is 12″ DIA x 18″ H, with an approximate volume of 1,870 in3.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
LACO’s standard top-loading 12″ DIA x 18″ H Vertical High (VH) Vacuum Chamber achieves vacuum performance down to 10-6 Torr and is ideal for high vacuum requirements in a compact space.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
LACO’s standard top-loading 12″ DIA x 12″ H Vertical High (VH) Vacuum Chamber achieves vacuum performance down to 1 x 10-6 Torr, and is ideal for high vacuum requirements in a compact space.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
LACO’s smallest top-loading high vacuum chamber, this standard 8″ DIA x 10″ H Vertical High (VH) Vacuum Chamber is capable of achieving vacuum performance levels down to 1 x 10-3 Torr and is ideal for high vacuum requirements in a compact space.
All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.
