Custom Solution | 12″ X 18″ Horizontal Vacuum Chamber

SKU:

X-1P33924

This 12″ x 18″ horizontal industrial (HI) series vacuum chamber supports industrial testing where visibility and easy access are important. LACO engineered the system with a 304 stainless steel body and a clear 1″ thick acrylic hinged door, which improves durability and allows full viewing of the test process. The front-loading layout and cradle-style feet also make it easy to place on a tabletop or integrate with a LACO mobility cart. With manual valves on the vacuum, vent, and gauge ports, the chamber supports stable operation at moderate vacuum levels, and helium leak integrity ensures reliable performance during routine testing.

Custom Solution | 12″ X 18″ Horizontal Vacuum Chamber

Custom Solution | 12″ X 18″ Horizontal Vacuum Chamber image 1

IndustriesAutomotive & Transportation Bio-Pharma Botanical Extraction Chemical & Gas Defense Electronics Fire Protection Laboratory / R&D Medical Power & Energy Refrigeration & A/C Vacuum Technology

Horizontal cylindrical stainless steel chamber with clear acrylic hinged door
Cradle-style base supports tabletop or mobile integration
Includes vacuum, vent, and gauge ports with manual valves
1″ thick acrylic lid for clear visibility of testing process
Helium leak tested to 1 x 10⁻⁸ atm-cc/sec

Chamber Dimension	12″ DIA x 18″ L (OD)
Vacuum Chamber	Series HI Horizontal Cylindrical Industrial Vacuum Chamber
Chamber Material	304 Stainless Steel w/hinged acrylic door
Vacuum Rating	1 x 10^-3 Torr
Chamber Seal	L – gasket
Vacuum Port	3/4″ NPT
Vent Port	½” NPT
Gauge Port	¼” NPT
Leak Rate	1 x10^-8 atm cc/sec (helium)
Approximate Volume	1,870 in³

IndustriesAutomotive & Transportation Bio-Pharma Botanical Extraction Chemical & Gas Defense Electronics Fire Protection Laboratory / R&D Medical Power & Energy Refrigeration & A/C Vacuum Technology

Related Products

30" x 36" High Vacuum Chamber for Product Manufacturing - LVC3036-3312-HH

Horizontal Cylindrical Vacuum Chambers

Custom Solution | 30″ X 36″ Horizontal Cylindrical High Vacuum Chamber for Commercial Product Manufacturing

System Platform: 30″ DIA x 36″ L Cylindrical Horizontal High Vacuum Chamber for Product Manufacturing made of 304 stainless steel and a #4 grain polish on the surface
System Configuration: Horizontal cylindrical, front-loading design with cradle-type support leg for mounting on a tabletop or customized LACO cart
Leak Test: Helium leak tested for quality assurance

Horizontal Cylindrical Vacuum Chambers

Custom Solution | 24″ X 30″ Horizontal Vacuum Chamber with Removable Shelf

System Configuration: 24″ DIA x 30″ L (OD) Series HI Horizontal Industrial Cylindrical Vacuum Chamber with glass beads blast finish interior and exterior and clear acrylic hinged door
System Platform: front-loading industrial design with cradle-type support leg for mounting on a tabletop or customized LACO cart
System ports: 3/4″ NPT vacuum inlet port with manual ball valve, ½” NPT vent port with manual ball valve, and NW16 gauge port.
Shelf: Removable 304 Stainless Steel fully removable shelf for loading of customer’s parts.

Horizontal Cylindrical Vacuum Chambers

Custom Solution | 12″ X 18″ Horizontal Vacuum Chamber with Removable Shelf

12″ x 18″ Vacuum Chamber with Removable Shelf
304 stainless steel horizontal cylindrical chamber with acrylic hinged door
Removable stainless steel shelf for easy part loading
Front-loading design with cradle-style base for flexible mounting
Includes vacuum, vent, and gauge ports with manual valves
Helium leak tested to 1 x 10⁻⁸ atm-cc/sec for quality assurance

Horizontal Cylindrical Vacuum Chambers

Custom Solution | 12″ X 18″ Horizontal Industrial Vacuum Chamber With Pull-out Shelves

Horizontal cylindrical stainless steel vacuum chamber with hinged front door
Two pull-out shelves on supported rails for easy loading and offloading
6″ ISO160 borosilicate glass viewport
CF 2.75″ spare port with blankoffs and hardware
Helium leak tested to 1 x 10⁻⁸ atm-cc/sec

Horizontal Cylindrical Vacuum Chambers

Custom Solution | 18″ X 20″ Horizontal Industrial (HI) Vacuum Chamber

System Configuration: 18″ DIA x 20″ L (OD) Series LVC1820-3112-HI Vacuum Chamber with glass beads blast finish interior and exterior and clear acrylic hinged door
System Platform: front-loading industrial design with cradle-type support leg for mounting on a tabletop or customized LACO cart
System ports: 3/4″ NPT vacuum port with nickel ball valve, ½” NPT vent port with mini ball valve, and ¼” NPT gauge port 0-30″ HG vacuum gauge
Shelf: Two Stainless Steel Shelves for loading of customer’s parts

Vacuum Chambers

24″ X 30″ Horizontal High (HH) Vacuum Chamber (Hinged Door with O-ring)

The 24″ DIA x 30″ L HH Series vacuum chamber features a high vacuum performance with a convenient front-loading design and a hinged door with O-ring.

Features

Horizontal cylindrical, front-loading design
Glass bead blasted 304 stainless steel body and door
Vacuum performance down to 1 x 10^-3 Torr with appropriate vacuum pump, contact LACO for deeper vacuum levels
Three standard NW ports: NW 25 vacuum and vent port and NW 16 gauge port
Helium leak tested to 10^-8 atm-cc/sec for quality assurance

Resources

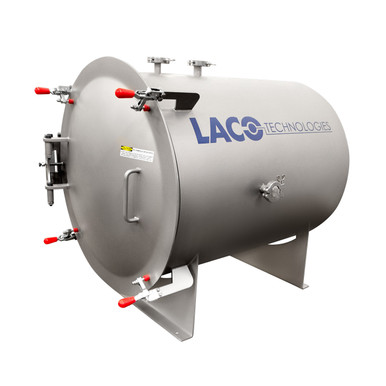

24" X 30" HH Vacuum Chamber (Hinged Door) - Right

Horizontal Cylindrical Vacuum Chambers

24″ X 30″ Horizontal High (HH) Vacuum Chamber

The 24″ x 30″ Horizontal High (HH) Series Vacuum Chamber delivers high vacuum performance in a front-loading, cylindrical design. Built from durable stainless steel and helium leak tested to 10^-8 atm-cc/sec, this chamber is ideal for applications requiring reliability and repeatability. A full-opening hinged door allows easy access, and multiple NW ports support versatile connectivity.

Features

Horizontal cylindrical, front-loading design
Glass bead blasted 304 stainless steel body and door
Vacuum performance down to 1 x 10^-3 Torr with appropriate vacuum pump, contact LACO for deeper vacuum levels
Three standard NW ports included: 1ea NW16, and 2ea NW 25 Ports with clamp, centering ring and blankoff.
Helium leak tested to 10^-8 atm-cc/sec for quality assurance
Includes fully wood crate for shipping chamber safely and efficiently to customer destination.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Horizontal Cylindrical Vacuum Chambers

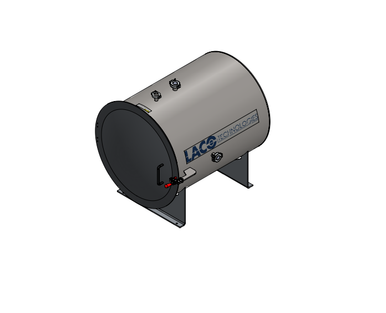

18″ X 20″ Horizontal High (HH) Vacuum Chamber

The 18″ DIA x 20″ L Horizontal High (HH) Vacuum Chamber delivers high vacuum performance with a space-saving front-loading cylindrical design. Constructed from glass bead blasted stainless steel, this chamber features a full-opening hinged door, multiple NW ports, and has been helium leak tested for quality assurance. Ideal for high vacuum applications requiring safe and consistent results.

Features

Horizontal cylindrical, front-loading design
Glass bead blasted 304 stainless steel body and door
Vacuum performance down to 1 x 10^-3 Torr with appropriate vacuum pump, contact LACO for deeper vacuum levels
Three standard NW ports:1ea NW16, and 2ea NW 25 Ports with clamp, centering ring and blankoff.
Helium leak tested to 10^-8 atm-cc/sec for quality assurance
Includes fully wood crate for shipping chamber safely and efficiently to customer destination.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Horizontal Cylindrical Vacuum Chambers

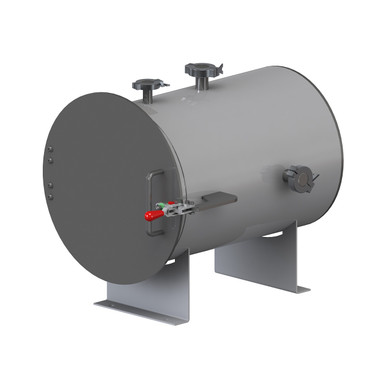

12″ X 18″ Horizontal High (HH) Vacuum Chamber

The 12″ DIA x 18″ L Horizontal High (HH) Vacuum Chamber delivers high vacuum performance in a compact front-loading cylindrical design. Built from stainless steel with a full-opening hinged door, this chamber is ideal for high vacuum testing and degassing applications. Each unit is helium leak tested and shipped in a fully crated package for secure delivery.

Features

Horizontal cylindrical, front-loading design
Glass bead blasted 304 stainless steel body and door
Vacuum performance down to 1 x 10^-3 Torr with appropriate vacuum pump, contact LACO for deeper vacuum levels
Three standard NW ports included: 1ea NW16, and 2ea NW 25 Ports with clamp, centering ring and blankoff.
Helium leak tested to 10^-8 atm-cc/sec for quality assurance
Includes fully wood crate for shipping chamber safely and efficiently to customer destination.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Horizontal Cylindrical Vacuum Chambers

24″ X 30″ Horizontal Industrial (HI) Vacuum Chamber

Our stainless steel 24″ DIA x 30″ L Horizontal Industrial (HI) Vacuum Chamber is ideal for front-loading industrial applications. Cradle type support feet are ideal for mounting the vacuum chamber on a table top or mount on a LACO cart to quickly move through your facility.

A 1″ thick clear acrylic door provides convenient viewing of your application process.

Features

Vacuum down to 10^-3 Torr
Horizontal cylindrical, front-loading design
1″ thick clear acrylic door
Three standard NPT ports included: 3/4″ vacuum inlet port w/manual ball valve, 3/4″ vent port w/manual ball valve, and 1/4″ gauge port 0-30 inHg vacuum gauge
Helium leak tested to 10^-8 atm-cc/sec for quality assurance
Cradle type support feet
Includes fully wood crate for shipping chamber safely and efficiently to customer destination.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Horizontal Cylindrical Vacuum Chambers

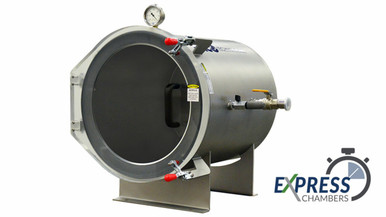

18″ X 20″ Horizontal Industrial (HI) Vacuum Chamber

The stainless steel 18″ DIA x 20″ L Horizontal Industrial (HI) Vacuum Chamber is ideal for convenient front-loading industrial applications. Cradle type support feet are ideal for mounting the vacuum chamber on either a table top or customize by mounting on a LACO cart to quickly move through your facility.

A 1″ thick clear acrylic door provides convenient viewing of your application process.

Features

Vacuum down to 10^-3 Torr
Horizontal cylindrical, front-loading design
1″ thick clear acrylic door
Three standard NPT ports included: 3/4″ vacuum inlet port with manual ball valve, 1/2″ vent port with manual ball valve, and 1/4″ gauge port 0-30 inHg vacuum gauge
Helium leak to 10^-8 atm-cc/sec tested for quality assurance
Cradle type support feet
Includes fully wood crate for shipping chamber safely and efficiently to customer destination.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Horizontal Cylindrical Vacuum Chambers

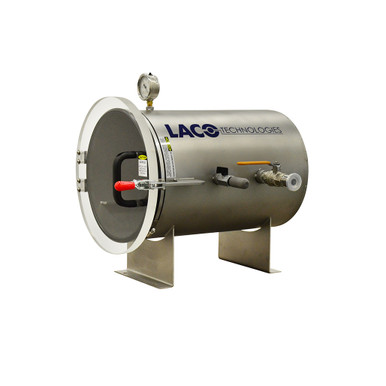

12″ X 18″ Horizontal Industrial (HI) Vacuum Chamber
