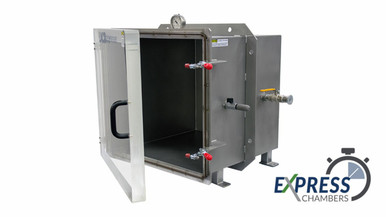

The 20″ Cube Industrial (CI) vacuum chamber provides a large internal work volume for demanding degassing, drying, and component testing applications. Constructed with a stainless steel body and stainless door, the chamber delivers durable performance and clean operation in industrial environments.
The system supports vacuum levels down to 10⁻³ Torr when paired with an appropriate vacuum pump and includes three standard ports: a vacuum port with manual ball valve, a vent port with manual ball valve, and a 0–30 inHg vacuum gauge for monitoring.
All LACO vacuum chambers are helium leak tested for quality assurance and each includes a certificate verifying leak testing. LACO will customize port locations for your specific application needs. Please contact our applications engineers to discuss any questions, special requirements or application support you may require.
| Size | 20″ W x 20″ H x 20″ D |
| Vacuum Rating | 1 x 10-3 Torr |
| Seal | Buna O-ring |
| Vacuum Port | NW 25 |
| Vent Port | 1/2″ NPT |
| Gauge Port | 1/4″ NPT |
| Chamber Material | Stainless Steel |
| Door Material | Stainless Steel |
| Door Configuration | Hinged |
| Approximate Volume | 8,000 in³ |
