Vacuum Traps & Filters

Vacuum traps and filters are used to protect pumps, chambers, and process equipment from contaminants, condensable vapors, and particulates. Traps prevent backstreaming of pump oils or vapors into the chamber, while filters capture dust, debris, and process byproducts. LACO offers traps and filters designed for a wide range of vacuum applications and pumping systems.

Product Type

Application

Method

Chamber Shape

Chamber Size

Chamber Material

Lid/Door Material

Lid/Door Style

Chamber Orientation

Thermal Control

Vacuum Rating

Heating Method

Leak Detector Model

Pump Type

Automation

Leak Type

Leak Exhast

Gas Type

Vacuum Range

Charge Type

Charge Pressure

Integration

Leak Detector Port

Cooling

Heating

Maximum Wats

Accessories For

TITAN VERSA (TV) Maintenance

Accessory Type

Brand

Service Parts For

Type

Industries

Vacuum Traps & Filters

9.5″ Replacement Element Filter

This 9.5″ replacement filter element fits standard clear sump housings and helps protect vacuum pumps from harmful vapors and particulates. With multiple filter media options available, it’s a versatile choice for reducing oil back-streaming, trapping contaminants, and extending pump life.

Features

Protects vacuum pump from vapors and particulates
Minimizes oil back-streaming in rotary vane pumps
Reduces oil misting and contamination
Traps corrosive or hazardous vapors
Easy to clean and maintain
Helps extend pump oil life
Element Material Filter Options:
- Copper Gauze
- Stainless Steel Gauze
- Molecular Sieve
- Sodasorb
- Activated Charcoal
- Activated Alumina
- PolyPro 2 Micron
- PolyPro 5 Micron
- PolyPro 20 Micron

Wondering which filter insert you use for you application? Refer to the table below for more information on each insert.

Element Material Filter Insert Specifications
	Characteristics	Applications
Copper Gauze	Large surface area traps condensable particles and oil vapors	Vacuum Oven, Plasma Ashing, Food Packaging
Stainless Steel Gauze	Same as copper, but with added corrosion protection	Vacuum Oven, Plasma Ashing, Food Packaging
Molecular Sieve	Reduces mechanical pump oil backstreaming and traps water vapor	Leak Detection, Residual Gas Analysis, Glove Box, Sputtering, Soldering
Sodasorb®	Minimizes migration of corrosive chemicals and neutralizes acidic vapors	Freeze Drying, Gel Drying, Reactive Ion Etching
Activated Charcoal	Removes organic solvents and vapors from resins and other products	Rotary Evaporation, Distillation, Degassing, Potting, Impregnation
Activated Alumina	Removes Lewis acids, polar compounds, other acids, water and particles	Rotary Evaporation, Distillation, Degassing, Potting, Impregnation
PolyPro 2 Micron	Traps high volumes of solids and particulates as small as 2 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down
PolyPro 5 Micron	Traps high volumes of solids and particulates as small as 5 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down
PolyPro 20 Micron	Traps high volumes of solids and particulates as small as 20 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

4.5″ Replacement Element Filter

This 4.5″ replacement filter element fits standard clear sump housings and helps protect vacuum pumps from harmful vapors and particulates. With multiple filter media options available, it’s a versatile choice for reducing oil back-streaming, trapping contaminants, and extending pump life.

Features

Protects vacuum pump from vapors and particulates
Minimizes oil back-streaming in rotary vane pumps
Reduces oil misting and contamination
Traps corrosive or hazardous vapors
Easy to clean and maintain
Helps extend pump oil life
Element Material Filter Options:
- Copper Gauze
- Stainless Steel Gauze
- Molecular Sieve
- Sodasorb
- Activated Charcoal
- Activated Alumina
- PolyPro 2 Micron
- PolyPro 5 Micron
- PolyPro 20 Micron

Wondering which filter insert you use for you application? Refer to the table below for more information on each insert.

Element Material Filter Insert Specifications
	Characteristics	Applications
Copper Gauze	Large surface area traps condensable particles and oil vapors	Vacuum Oven, Plasma Ashing, Food Packaging
Stainless Steel Gauze	Same as copper, but with added corrosion protection	Vacuum Oven, Plasma Ashing, Food Packaging
Molecular Sieve	Reduces mechanical pump oil backstreaming and traps water vapor	Leak Detection, Residual Gas Analysis, Glove Box, Sputtering, Soldering
Sodasorb®	Minimizes migration of corrosive chemicals and neutralizes acidic vapors	Freeze Drying, Gel Drying, Reactive Ion Etching
Activated Charcoal	Removes organic solvents and vapors from resins and other products	Rotary Evaporation, Distillation, Degassing, Potting, Impregnation
Activated Alumina	Removes Lewis acids, polar compounds, other acids, water and particles	Rotary Evaporation, Distillation, Degassing, Potting, Impregnation
PolyPro 2 Micron	Traps high volumes of solids and particulates as small as 2 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down
PolyPro 5 Micron	Traps high volumes of solids and particulates as small as 5 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down
PolyPro 20 Micron	Traps high volumes of solids and particulates as small as 20 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

9.5″ Transparent Sump Trap

9.5″ Transparent Sump Trap with various filter insert and fitting options. These traps are used to contain high volumes of solids and particulates. 3/4″ Female Pipe Thread Terminations. Recommended up to 15 cfm.

Features

Protect pump from vapors and particles
Minimize oil back-streaming from oil-sealed pumps
Easy maintenance and cleaning
Minimize oil misting of rotary vane pumps
Trap toxic or corrosive chemicals and vapors
Extend pump oil life by filtration
Element Material Filter Insert Options:
- No Insert
- Copper Gauze
- Stainless Steel Gauze
- Molecular Sieve
- Sodasorb
- Activated Charcoal
- Activated Alumina
- PolyPro 2 Micron
- PolyPro 5 Micron
- PolyPro 20 Micron
Fitting Options:
- No fittings
- NW25 fittings

Wondering which filter insert you use for you application? Refer to the table below for more information on each insert.

Element Material Filter Insert Specifications
	Characteristics	Applications
Copper Gauze	Large surface area traps condensable particles and oil vapors	Vacuum Oven, Plasma Ashing, Food Packaging
Stainless Steel Gauze	Same as copper, but with added corrosion protection	Vacuum Oven, Plasma Ashing, Food Packaging
Molecular Sieve	Reduces mechanical pump oil backstreaming and traps water vapor	Leak Detection, Residual Gas Analysis, Glove Box, Sputtering, Soldering
Sodasorb®	Minimizes migration of corrosive chemicals and neutralizes acidic vapors	Freeze Drying, Gel Drying, Reactive Ion Etching
Activated Charcoal	Removes organic solvents and vapors from resins and other products	Rotary Evaporation, Distillation, Degassing, Potting, Impregnation
Activated Alumina	Removes Lewis acids, polar compounds, other acids, water and particles	Rotary Evaporation, Distillation, Degassing, Potting, Impregnation
PolyPro 2 Micron	Traps high volumes of solids and particulates as small as 2 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down
PolyPro 5 Micron	Traps high volumes of solids and particulates as small as 5 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down
PolyPro 20 Micron	Traps high volumes of solids and particulates as small as 20 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

4.5″ Transparent Sump Trap

4.5″ Transparent Sump Trap with various filter insert and fitting options. These traps are used to contain high volumes of solids and particulates. 1/2″ Female Pipe Thread Terminations. Recommended up to 5 cfm.

Features

Protect pump from vapors and particles
Minimize oil back-streaming from oil-sealed pumps
Easy maintenance and cleaning
Minimize oil misting of rotary vane pumps
Trap toxic or corrosive chemicals and vapors
Extend pump oil life by filtration
Element Material Filter Insert Options:
- No Insert
- Copper Gauze
- Stainless Steel Gauze
- Molecular Sieve
- Sodasorb
- Activated Charcoal
- Activated Alumina
- PolyPro 2 Micron
- PolyPro 5 Micron
- PolyPro 20 Micron
Fitting Options:
- No fittings
- NW25 fittings

Wondering which filter insert you use for you application? Refer to the table below for more information on each insert.

Element Material Filter Insert Specifications
	Characteristics	Applications
Copper Gauze	Large surface area traps condensable particles and oil vapors	Vacuum Oven, Plasma Ashing, Food Packaging
Stainless Steel Gauze	Same as copper, but with added corrosion protection	Vacuum Oven, Plasma Ashing, Food Packaging
Molecular Sieve	Reduces mechanical pump oil backstreaming and traps water vapor	Leak Detection, Residual Gas Analysis, Glove Box, Sputtering, Soldering
Sodasorb®	Minimizes migration of corrosive chemicals and neutralizes acidic vapors	Freeze Drying, Gel Drying, Reactive Ion Etching
Activated Charcoal	Removes organic solvents and vapors from resins and other products	Rotary Evaporation, Distillation, Degassing, Potting, Impregnation
Activated Alumina	Removes Lewis acids, polar compounds, other acids, water and particles	Rotary Evaporation, Distillation, Degassing, Potting, Impregnation
PolyPro 2 Micron	Traps high volumes of solids and particulates as small as 2 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down
PolyPro 5 Micron	Traps high volumes of solids and particulates as small as 5 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down
PolyPro 20 Micron	Traps high volumes of solids and particulates as small as 20 microns, reduces oil backstreaming.	Ion Implant, Vacuum Transfer, Hold Down

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

9.5″ Transparent Inlet Filter Bundle

This 9.5″ Transparent Inlet Filter Bundle provides an effective solution for trapping condensable particles and oil vapors before they reach your vacuum pump. Designed for high flow and corrosion resistance, this filter assembly includes a clear poly sump, stainless steel gauze element, and all necessary NW25 fittings. Fully preassembled and vacuum tested for immediate use.

Kit Includes

9.5″ Transparent Sump Trap
2 – 9.5″ Stainless Steel Gauze Cartridges
Stainless Elbow
3 – NW/KF25 Stainless Steel Clamps
3 – NW/KF25 O-rings
Preassembled and Vacuum Tested

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

4.5″ Transparent Inlet Trap Bundle

This 4.5″ Transparent Inlet Filter Bundle provides an effective solution for trapping condensable particles and oil vapors before they reach your vacuum pump. Designed for high flow and corrosion resistance, this filter assembly includes a clear poly sump, stainless steel gauze element, and all necessary NW25 fittings. Fully preassembled and vacuum tested for immediate use.

Kit Includes

4.5″ Transparent Sump Trap
2 – 4.5″ Stainless Steel Gauze Cartridges
Stainless Elbow
3 – NW/KF25 Stainless Steel Clamps
3 – NW/KF25 O-rings
Preassembled and Vacuum Tested

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

Clear Knockout Trap, 1″ NPT w/vacuum gauge

The Clear Inline Vacuum Trap is designed as a knockout trap for bulk liquids. Its transparent acrylic sump allows full visibility of fluid accumulation and can be removed for cleanout without disturbing piping. Rated for full vacuum service, this trap is ideal for protecting vacuum systems from contamination.

Features

Clear acrylic housing for easy visual monitoring
Removable sump (approx. 5″ DIA x 10″ H) for fast maintenance
Integrated 30 psi to -30 inHg vacuum gauge with 2.5″ stainless steel face
1″ NPT inlet and outlet connections
Rated for full vacuum applications

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Vacuum Traps & Filters

Right Angle 4″ High Vacuum Trap, NW25

A 4″ stainless steel high vacuum trap with NW25 flange connections set at a right angle configuration. Includes one filter element (see element choices below). Traps also come in a straight through design. Also available with hose terminations.

Features

Positive Flow
No blow-by
Variety of elements
Positive trapping
Easy changing and cleaning

Choose from these Elements:

Stainless Steel Gauze
Copper Gauze
Molecular Sieve
SodaSorb
Activated Charcoal
PolyPro (2, 5, and 20 Microns)

Benefits

Versatile foreline trap prevents contaminants from entering the vacuum pump and protects the system from pump fluid contamination.
The flow of the effluent gas is directed through the inlet port to the filter elements.
Filter elements are sealed at both the inlet and the exhaust ends, eliminating blow-by and maintaining a positive flow through the elements.
One element is required in the 4″ traps.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

Straight Thru 4″ High Vacuum Trap, NW25

A 4″ stainless steel high vacuum trap with NW25 flange connections set at a straight through configuration. Includes one filter element (see element choices below). Traps also come in a right angle design. Also available with hose terminations.

Features

Positive Flow
No blow-by
Variety of elements
Positive trapping
Easy changing and cleaning

Choose from these Elements:

Stainless Steel Gauze
Copper Gauze
Molecular Sieve
SodaSorb
Activated Charcoal
PolyPro (2, 5, and 20 Microns)

Benefits

Versatile foreline trap prevents contaminants from entering the vacuum pump and protects the system from pump fluid contamination.
The flow of the effluent gas is directed through the inlet port to the filter elements.
Filter elements are sealed at both the inlet and the exhaust ends, eliminating blow-by and maintaining a positive flow through the elements.
One element is required in the 4″ traps.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

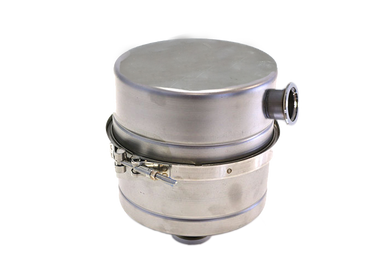

Right Angle 8″ High Vacuum Trap, NW40

An 8″ stainless steel high vacuum trap with NW40 flange connections set at a right angle configuration. Includes four filter elements (see element choices below). Traps also come in a straight through design. Also available with hose terminations.

Features

Positive Flow
No blow-by
Variety of elements
Positive trapping
Easy changing and cleaning

Choose from these Elements:

Stainless Steel Gauze
Copper Gauze
Molecular Sieve
SodaSorb
Activated Charcoal
PolyPro (2, 5, and 20 Microns)

Benefits

Versatile foreline trap prevents contaminants from entering the vacuum pump and protects the system from pump fluid contamination.
The flow of the effluent gas is directed through the inlet port to the filter elements.
Filter elements are sealed at both the inlet and the exhaust ends, eliminating blow-by and maintaining a positive flow through the elements.
Four filter elements are required per 8″ trap and they must be of the same medium.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

Right Angle 8″ High Vacuum Trap, NW50

An 8″ stainless steel high vacuum trap with NW50 flange connections set at a right angle configuration. Includes four filter elements (see element choices below). Traps also come in a straight through design. Also available with hose terminations.

Features

Positive Flow
No blow-by
Variety of elements
Positive trapping
Easy changing and cleaning

Choose from these Elements:

Stainless Steel Gauze
Copper Gauze
Molecular Sieve
SodaSorb
Activated Charcoal
PolyPro (2, 5, and 20 Microns)

Benefits

Versatile foreline trap prevents contaminants from entering the vacuum pump and protects the system from pump fluid contamination.
The flow of the effluent gas is directed through the inlet port to the filter elements.
Filter elements are sealed at both the inlet and the exhaust ends, eliminating blow-by and maintaining a positive flow through the elements.
Four filter elements are required per 8″ trap and they must be of the same medium.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

Straight Thru 8″ High Vacuum Trap, NW50

An 8″ stainless steel high vacuum trap with NW50 flange connections set at a straight through configuration. Includes four filter elements (see element choices below). Traps also come in a right angle design. Also available with hose terminations.

Features

Positive Flow
No blow-by
Variety of elements
Positive trapping
Easy changing and cleaning

Choose from these Elements:

Stainless Steel Gauze
Copper Gauze
Molecular Sieve
SodaSorb
Activated Charcoal
PolyPro (2, 5, and 20 Microns)

Benefits

Versatile foreline trap prevents contaminants from entering the vacuum pump and protects the system from pump fluid contamination.
The flow of the effluent gas is directed through the inlet port to the filter elements.
Filter elements are sealed at both the inlet and the exhaust ends, eliminating blow-by and maintaining a positive flow through the elements.
Four filter elements are required per 8″ trap and they must be of the same medium.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Traps & Filters

Straight Thru 8″ High Vacuum Trap, NW40

An 8″ stainless steel high vacuum trap with NW40 flange connections set at a straight through configuration. Includes four filter elements (see element choices below). Traps also come in a right angle design. Also available with hose terminations.

Features

Positive Flow
No blow-by
Variety of elements
Positive trapping
Easy changing and cleaning

Choose from these Elements:

Stainless Steel Gauze
Copper Gauze
Molecular Sieve
SodaSorb
Activated Charcoal
PolyPro (2, 5, and 20 Microns)

Benefits

Versatile foreline trap prevents contaminants from entering the vacuum pump and protects the system from pump fluid contamination.
The flow of the effluent gas is directed through the inlet port to the filter elements.
Filter elements are sealed at both the inlet and the exhaust ends, eliminating blow-by and maintaining a positive flow through the elements.
Four filter elements are required per 8″ trap and they must be of the same medium.

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Pumps

CoreVax W2V40 14 CFM Professional Pump Package

COREVAX‘s 14 CFM Professional Pump Package features a rugged W2V40 rotary vane vacuum pump – a dual-stage, oil-sealed design producing 14 CFM and an ultimate vacuum of 10^-3 Torr or 29.9 inHG. This pump is lightweight, quiet, compact and features an anti-suckback valve and gas ballast knob, quick disconnect ISO/KF25 fittings, and is ideal for a variety of applications.

Features

W2V40 14 CFM two-stage oil-sealed vacuum pump with 120V/220V 60 Hz motor
Dual-stage NW 25 exhaust / oil mist eliminator with coalescing media cartridges for the oil mist and adsorptive activated carbon cartridge to remove any residual vapors or odors
Digital display Pirani vacuum gauge module with power cable for 120V, range 760 Torr to 10^-3 Torr with NW 25 adaptor tee for easy installation at pump inlet or at system inlet
9.5″ clear vacuum trap with stainless steel gauze cartridge and NW 25 inlet and outlet ports
NW 25 clamps and centering rings for installation of provided accessories
1 set of replacement cartridges for inlet trap and exhaust filters
1 gallon of VacOil 19 grade vacuum pump oil
1 gallon of VacOil flushing fluid

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Pumps

CoreVax W2V20 7.0 CFM Professional Pump Package

COREVAX’s 7.0 CFM Professional Pump Package features a rugged W2V20 rotary vane vacuum pump – a dual-stage, oil-sealed design producing 7.0 CFM and an ultimate vacuum of 10^-3 Torr or 29.9 inHG. This pump is lightweight, quiet, compact and features an anti-suckback valve and gas ballast knob, quick disconnect ISO/KF25 fittings, and is ideal for a variety of applications.

Features

W2V20 7.0 CFM two-stage oil-sealed vacuum pump with 120V/220V 60 Hz motor
Dual-stage NW 25 exhaust / oil mist eliminator with coalescing media cartridges for the oil mist and adsorptive activated carbon cartridge to remove any residual vapors or odors
Digital display Pirani vacuum gauge module with power cable for 120V, range 760 Torr to 10^-3 Torr with NW 25 adaptor tee for easy installation at pump inlet or at system inlet
4.5″ clear vacuum trap with stainless steel gauze cartridge and NW 25 inlet and outlet ports
NW 25 clamps and centering rings for installation of provided accessories
1 set of replacement cartridges for inlet trap and exhaust filters
1 gallon of VacOil 19 grade vacuum pump oil
1 gallon of VacOil flushing fluid

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Resources

Vacuum Pumps

CoreVax W2V10 3.5 CFM Professional Pump Package

COREVAX’s 3.5 CFM Professional Pump Package features a rugged W2V10 rotary vane vacuum pump – a dual-stage, oil-sealed design producing 3.5 CFM and an ultimate vacuum of 10^-3 Torr or 29.9 inHG. This pump is lightweight, quiet, compact and features an anti-suckback valve and gas ballast knob, quick disconnect ISO/KF25 fittings, and is ideal for a variety of applications.

Features

W2V10 3.5 CFM two-stage oil-sealed vacuum pump with 120V/220V 60 Hz motor
Dual-stage NW 25 exhaust / oil mist eliminator with coalescing media cartridges for the oil mist and adsorptive activated carbon cartridge to remove any residual vapors or odors
Digital display Pirani vacuum gauge module with power cable for 120V, range 760 Torr to 10^-3 Torr with NW 25 adaptor tee for easy installation at pump inlet or at system inlet
4.5″ clear vacuum trap with stainless steel gauze cartridge and NW 25 inlet and outlet ports
NW 25 clamps and centering rings for installation of provided accessories
1 set of replacement cartridges for inlet trap and exhaust filters
1 gallon of VacOil 19 grade vacuum pump oil
1 gallon of VacOil flushing fluid

All prices are in US$. Website pricing is good only for the USA. Please call for International pricing.

Vacuum Traps & Filters

Applied Filters

Vacuum Traps & Filters

Features

Resources

Vacuum Traps & Filters

Features

Resources

Vacuum Traps & Filters

Features

Resources

Vacuum Traps & Filters

Features

Resources

Vacuum Traps & Filters

Kit Includes

Resources

Vacuum Traps & Filters

Kit Includes

Resources

Vacuum Traps & Filters

Features

Vacuum Traps & Filters

Features

Choose from these Elements:

Benefits

Resources

Vacuum Traps & Filters

Features

Choose from these Elements:

Benefits

Resources

Vacuum Traps & Filters

Resources

Vacuum Traps & Filters

Resources

Vacuum Traps & Filters

Resources

Vacuum Traps & Filters

Resources

Vacuum Pumps

Features

Resources

Vacuum Pumps

Features

Resources

Vacuum Pumps

Features

Resources
